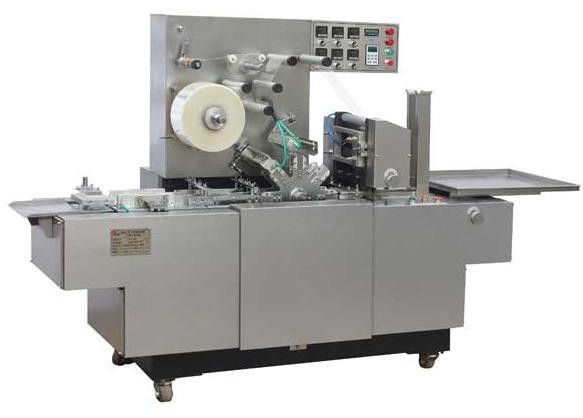

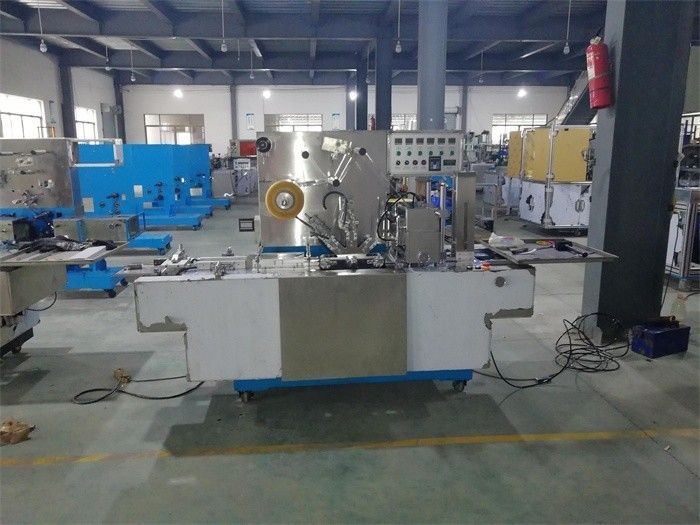

Three dimensional Automatic Wrapping Machine Transparent Film - type for pharmaceutical

Three dimensional Automatic Wrapping Machine Transparent Film

Production capacity: 40-80bag/min

Packing material : OPP,BOP thermal sealing film, thermal viscous cellophane And anti-falsification easy-pull line

Packing spec : L40-200mm W15-130mm H10-50mm

Power : 220V 50-60Hz

Gross power : 4.5kw

Weight :650kg

Overall Dimension: 2100x750x1550mm

Function description:

This machine is mainly suitable for pharmaceutical, food, health care products, cosmetics, audio-visual products, such as square appearance decoration items in a box, the packing industry.Such as PCS, chewing gum, health care products, tea, sugar, condoms, rubber, mosquito-repellent incense, cigarette, tape, VCD discs (CDS), playing CARDS, transparent soap, square type batteries, such as a floppy disk have played an important role in security, moisture, and improve product class, increase the added value products.This device can and cartoning machine joint production.

Main features:

1, Reasonable compact structure, stable performance is advanced, convenient operation and maintenance,;The shell for all 304 stainless steel
2. Adopt multi-function digital frequency inverter, and stepless variable speed;
3. The mould replacement is convenient, flexible;Head with double screw lift more smoothly, to overcome the old packaging machine unilateral adjusting faults
4. With automatic feeder, automatic counting, etc;
5. The driving part is equipped with all kinds of protection devices and fault prompt;
6. Commissioning film feeding clutch, no box no film, no waste of packing materials.
